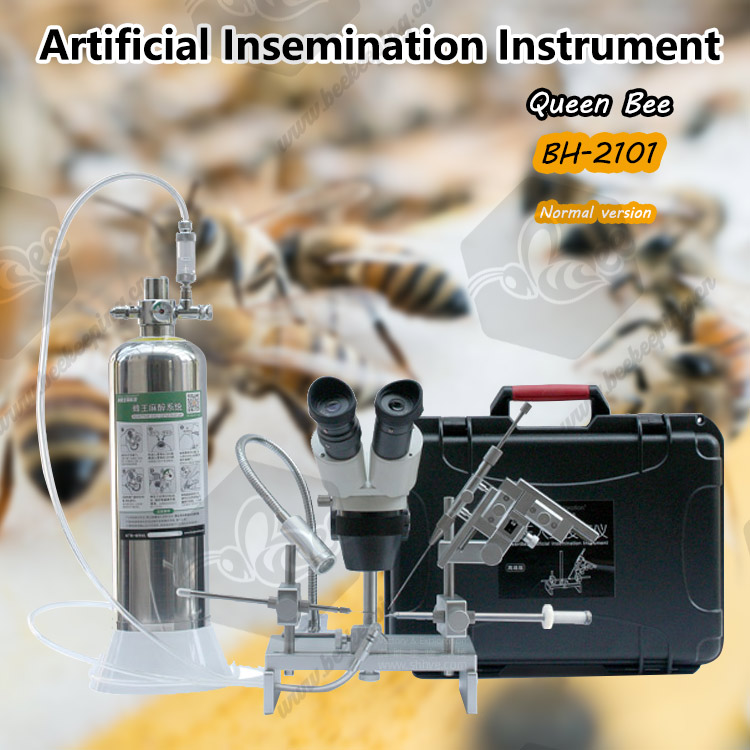

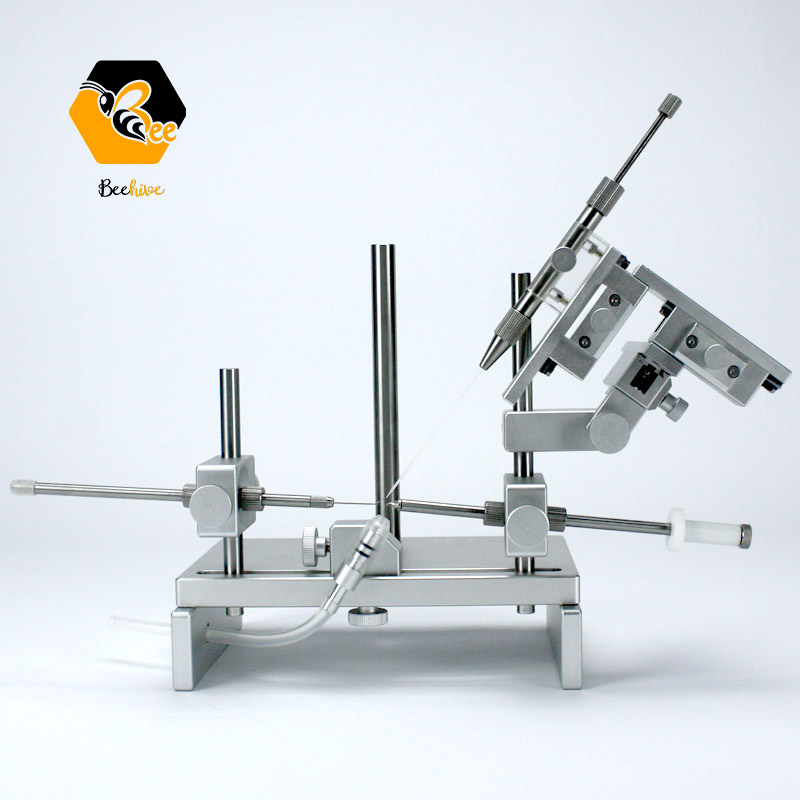

Artificial Insemination Instrument Of Queen Bee

Artificial Insemination Instrument Of Queen Bee

Exquisite Craftsmanship of strict requirements for micron-level technique.Smooth Operational Feeling generated from repeated polishing and debugging of all parts generated.An All-round breakthrough in accurate micro-operation.Use : Bee Breeding Farm , Beekeeping Farm , Research laboratory of Bee Breeding , Bee Academic Project , Artificial Insemination of other Insects …

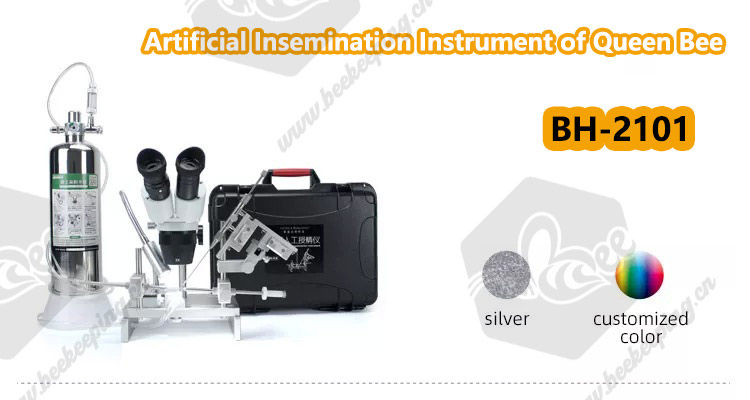

Product name	Artificial Insemination Instrument of Queen Bee
Brand	BH
Model	BH-2101
Main material	Aluminium alloy, stainless steel
Color	silver

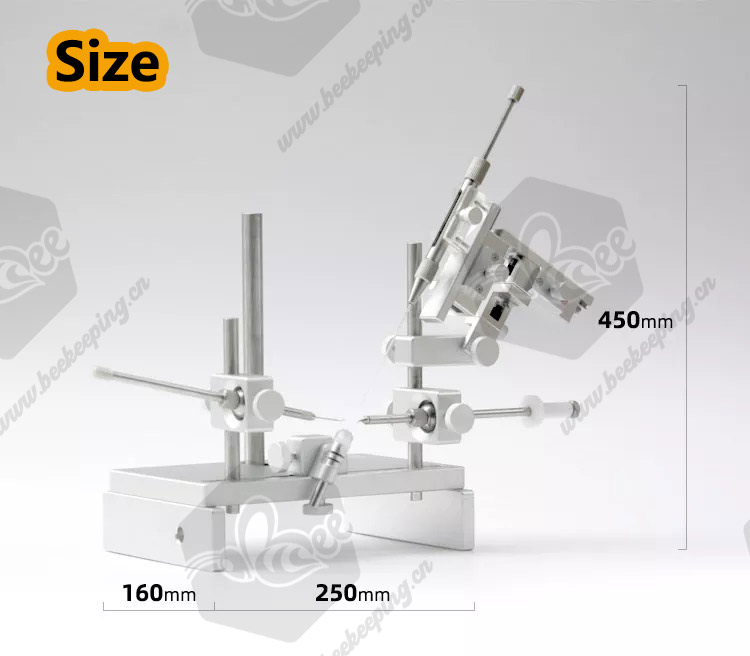

size	250 X 160 X 450 mm
Instrument net weight (±0.5kg)	5 kg
Protective box size	300 X 200 X 400 mm ( ±20mm )
Carton size	400 X 400 X 600 mm ( ±50mm )
Net weight of set package(±1kg)	14 kg

Artificial Insemination Instrument Of Queen Bee

Packing List

One Artificial Insemination Instrument Of Queen Bee ( BH-2101) : Including one Instrument Body , one Abdominal Hook , one Tail Clip , one Spiral Micro Syringe (1000μL ) , one Induction Room , one Anesthesia Room , three Special Needle for Queen Bee’s Insemination , one Protective Box and an Instruction Manual .
One Anesthesia System Of Queen Bee ：
one high-pressure 304 steel cylinder, one bubble recorder, one base, one valve, one hose
One Special Microscope
One Luminescent Lamp

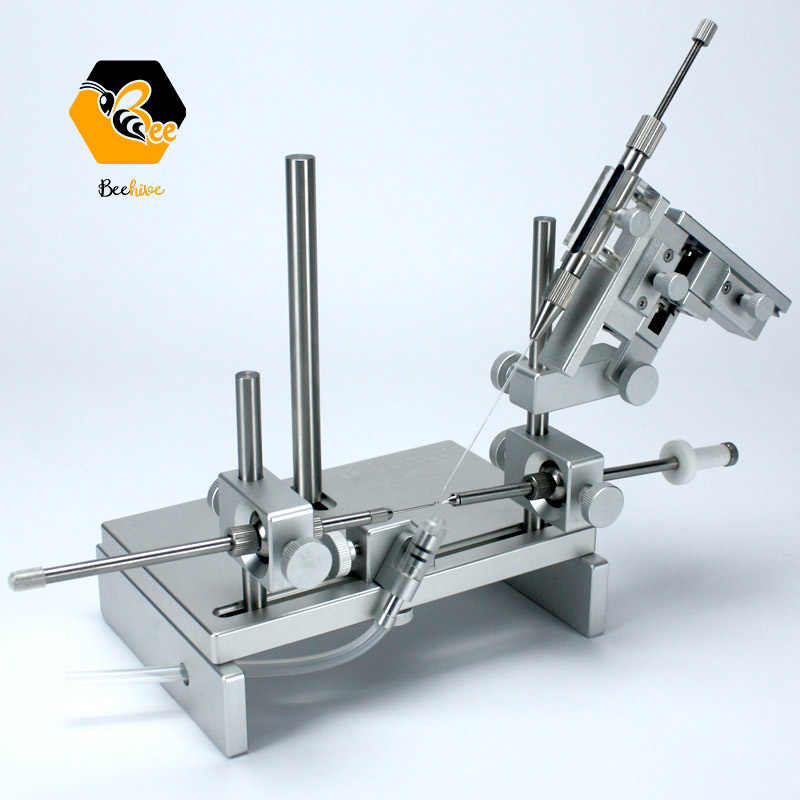

Micro-void Artificial Insemination Instrument Of Queen Bee

Our patented product is self-developed , which is not only a professional instrument for scientific research , but also applicable to the commercial use of the apiculture industry.

Perfect size & Metal Body

The size of the instrument is suitable for bees, which is also designed ergonomically. It is easy to operate.Its design integrates metal materials (such as aluminum alloy and stainless steel) and plexiglass.

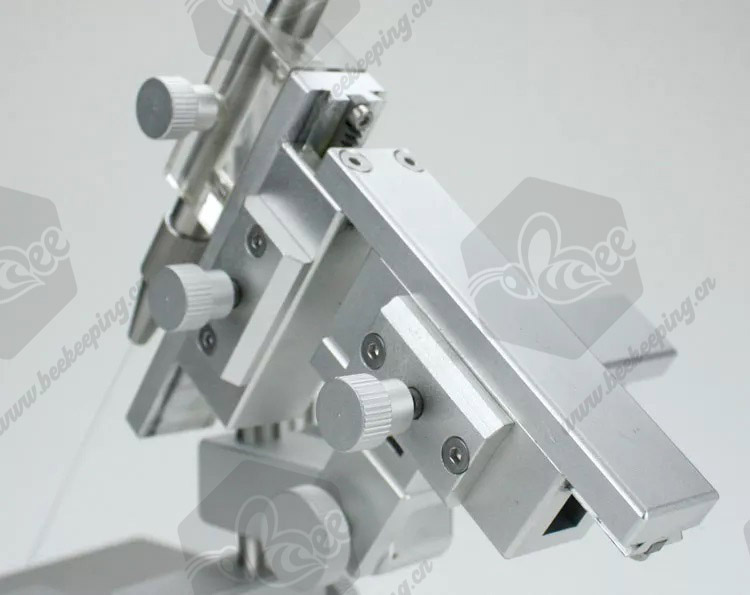

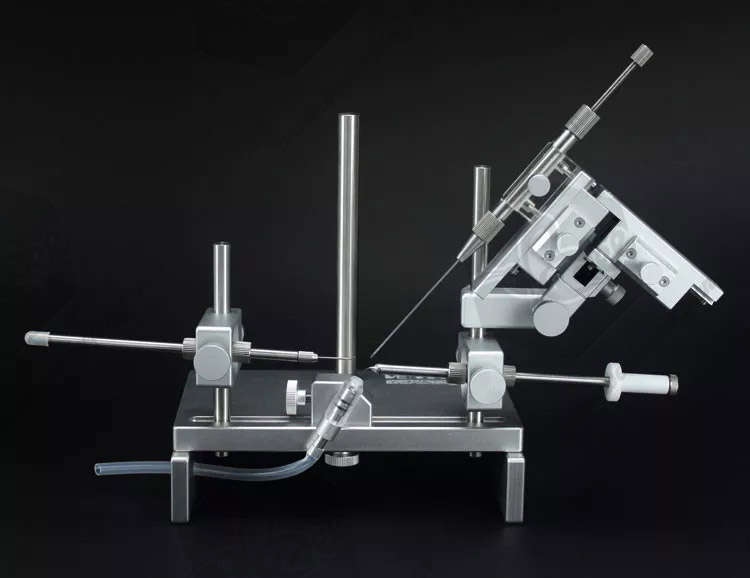

3D Guide Rail & Free Fine-tuning

With a fine-tuning function, VE’s 3D guide rail can be adjusted from six directions (top, bottom, left, right, front and back). Thanks to its sound adjustment adaptability, this product is easy to operate, which can meet your demanding requirements for the freedom and accurate control of the instrument. The product’s performance in this respect is rather extraordinary.

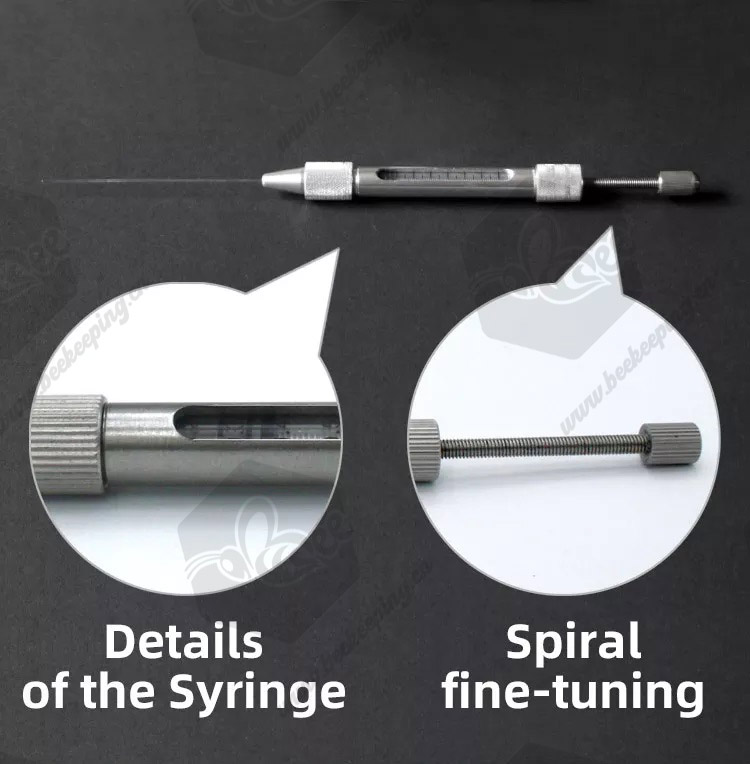

Micro Syringe

A spiral fine-tuning syringe can help you accurately control and inject the drone’s semen, as well as avoid causing damage to the queen bee by wrong operation.

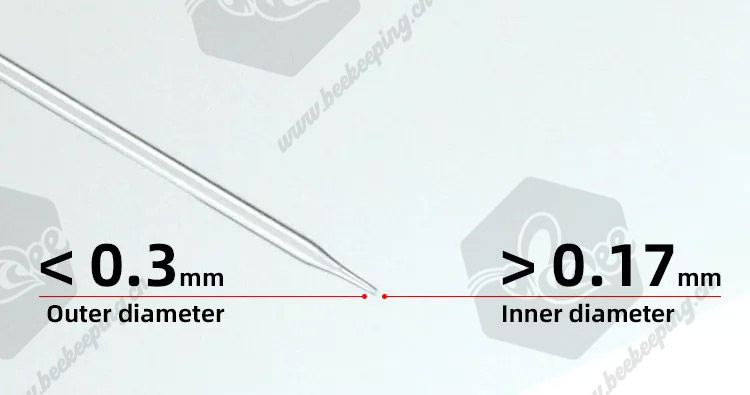

Special Needle for Queen Bee’s Artificial Insemination

VE’s Special Insemination Needle is transparent and smoothly rounded, without hurting the queen bee. This patented and ultra-fine needle is of special craft. Being made up of glass, with an outer diameter less than 0.3mm and an inner diameter more than 0.17mm, this needle makes for a clear observation of the drone’s semen condition during the semen collection and insemination.

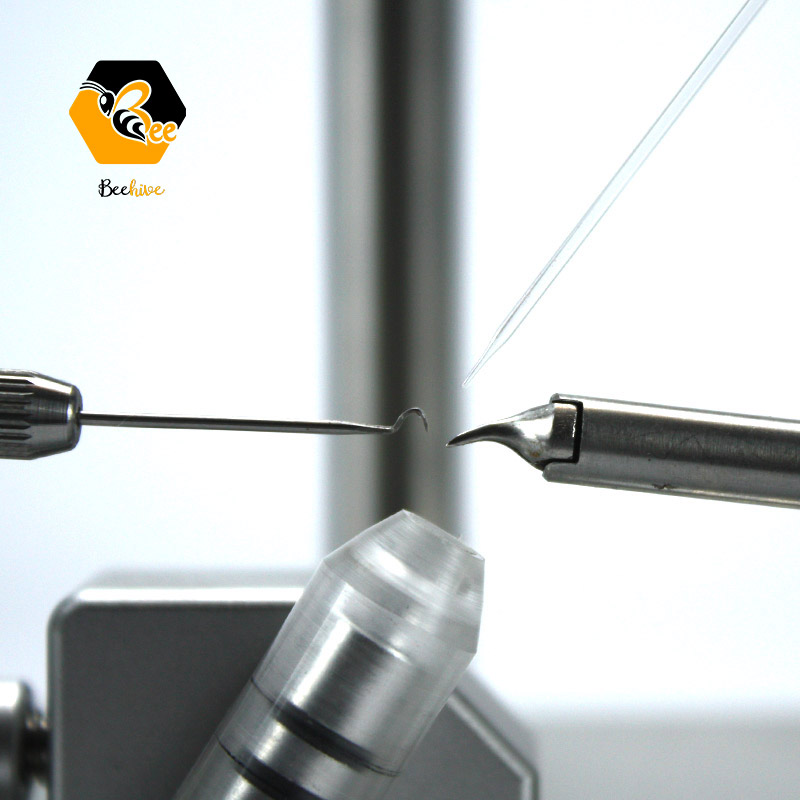

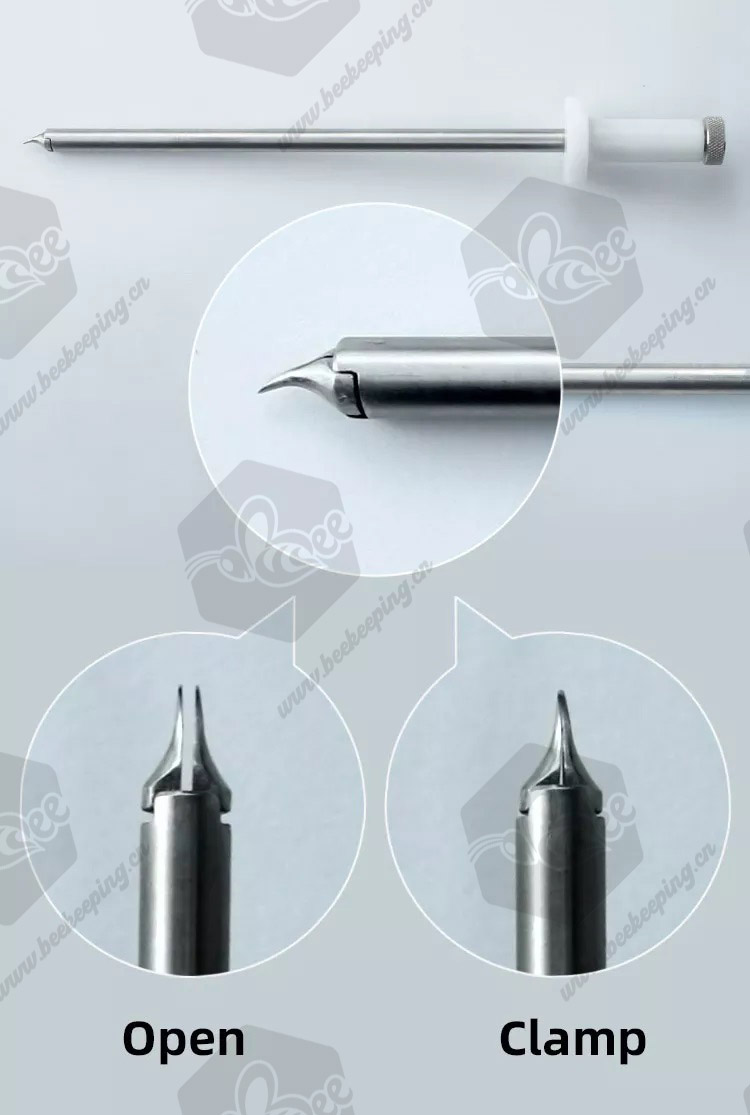

Tail Clip

The Tail Clip can pull Queen Bee’s stinger more efficiently , making the Special Insemination Needle of insemination pass through its valvefold in an easier way without causing damage to the Queen Bee. This type of insemination instrument eliminates the use of old instrument's probe, and greatly reduces mechanical damage to the queen bee. This kind of hook suits many kinds of bee.

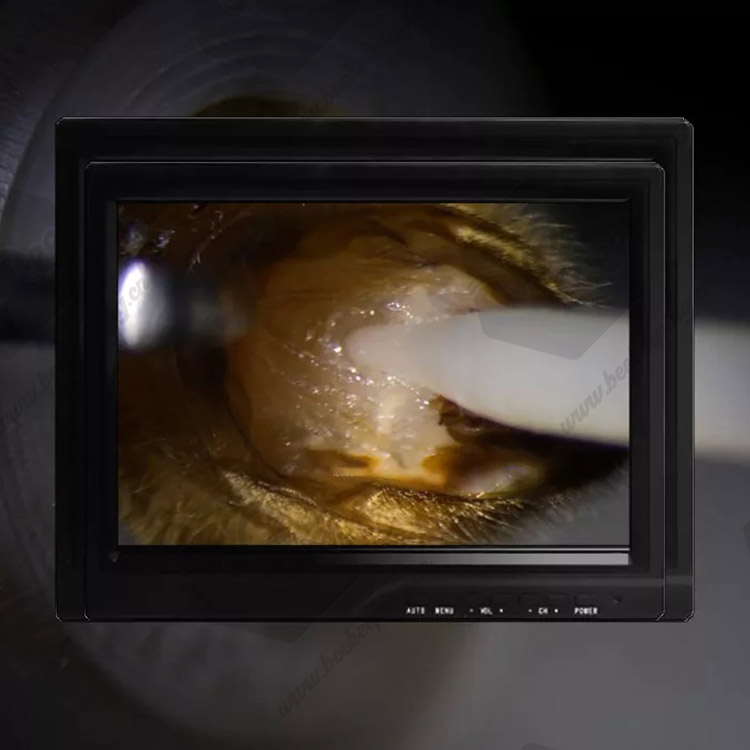

Displayer

Display components include: one 10-inch display, one special bracket, one power cord and other accessories.It is used in combination with CCD Electronic Eyepiece ， CCD Connector, Three-eye Microscope and other accessories.The display expanded display mode of microscope, maked more convenient and intuitive in artificial insemination, and suitable for teaching, demonstration and other work.In addition to the CCD components connected to the display, but also connected to computers, television and other large screen.

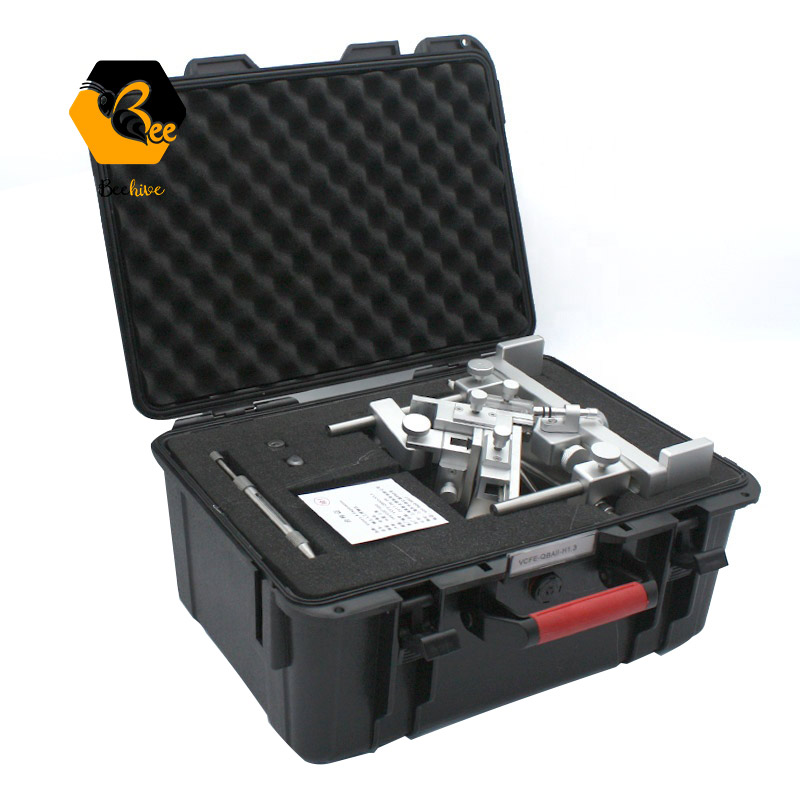

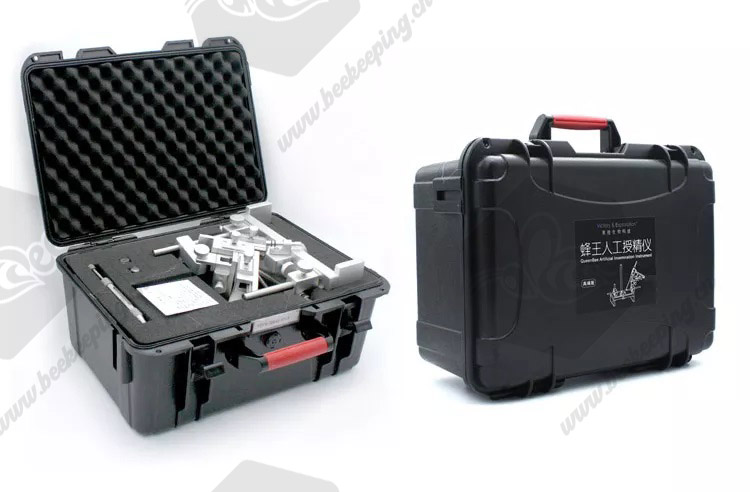

Portable Protective Box

Thanks to the Integrated injection molding technique, the box is exceptionally strong which enjoys anti-fall, anti-pressure, anti-impact, waterproof, dust-proof, corrosion-resistant, high temperature and cold resistance advantages. This professional protection provides safety for your precision instruments.

The size is measured by hand, so it is normal if there is a margin of error .

The image shown here is indicative only . If there is inconsistency between the image and the actual product , the actual product shall govern .

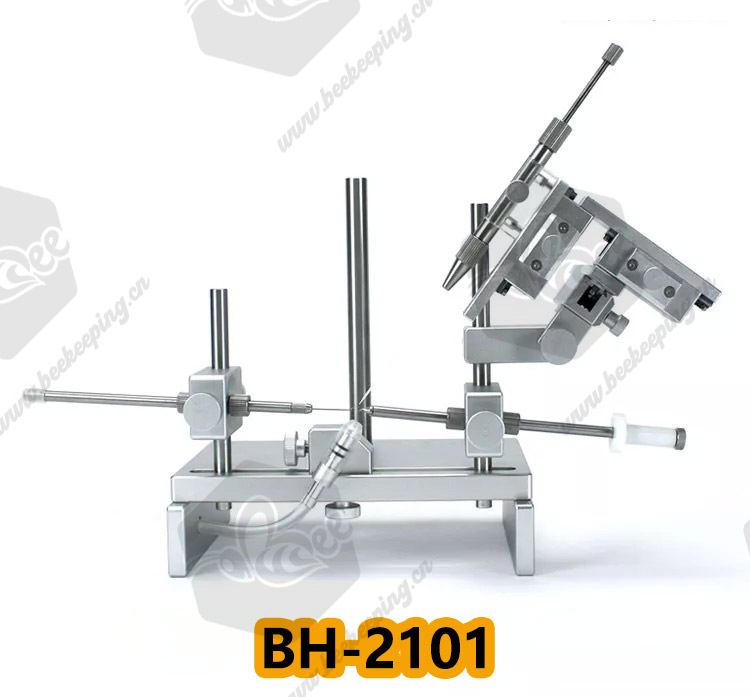

BH-2101

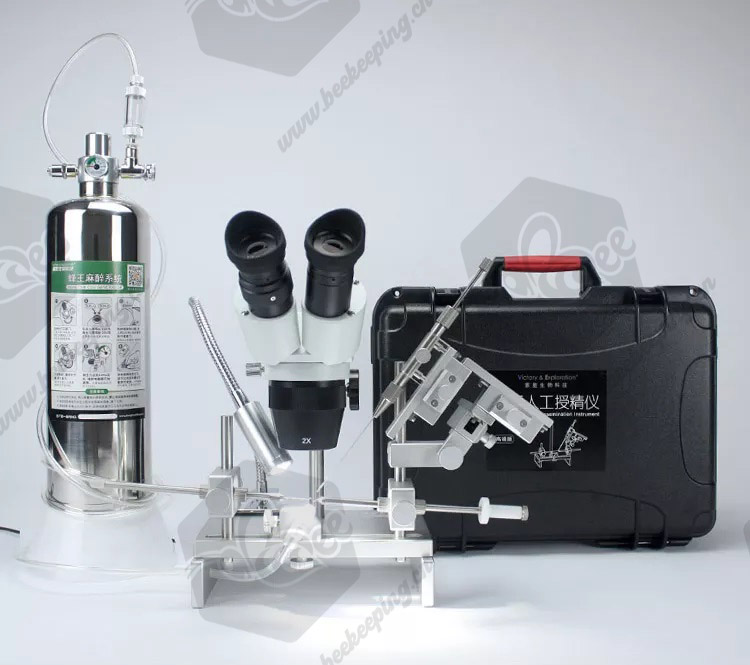

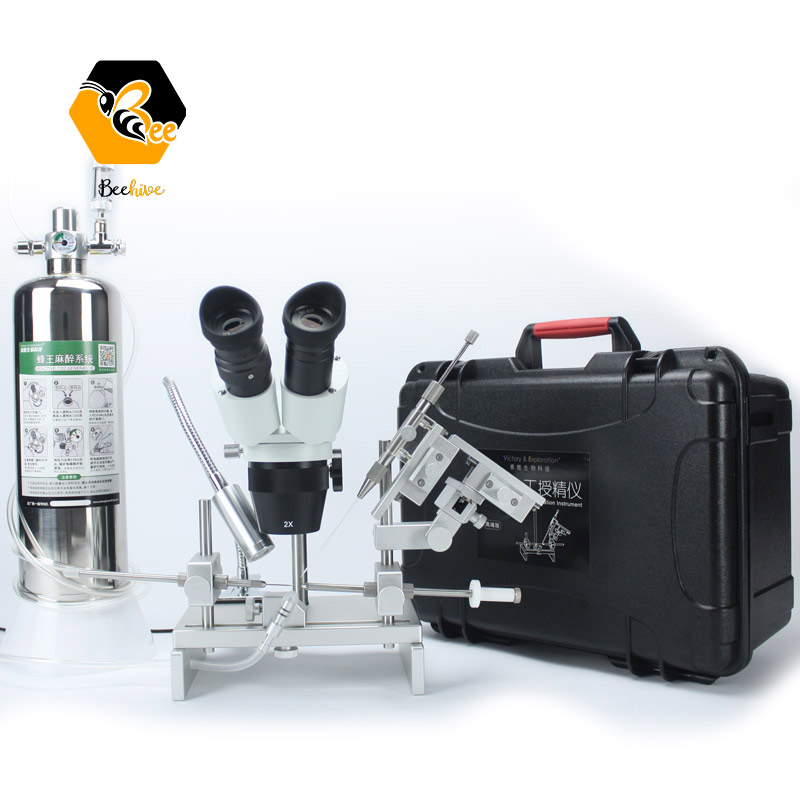

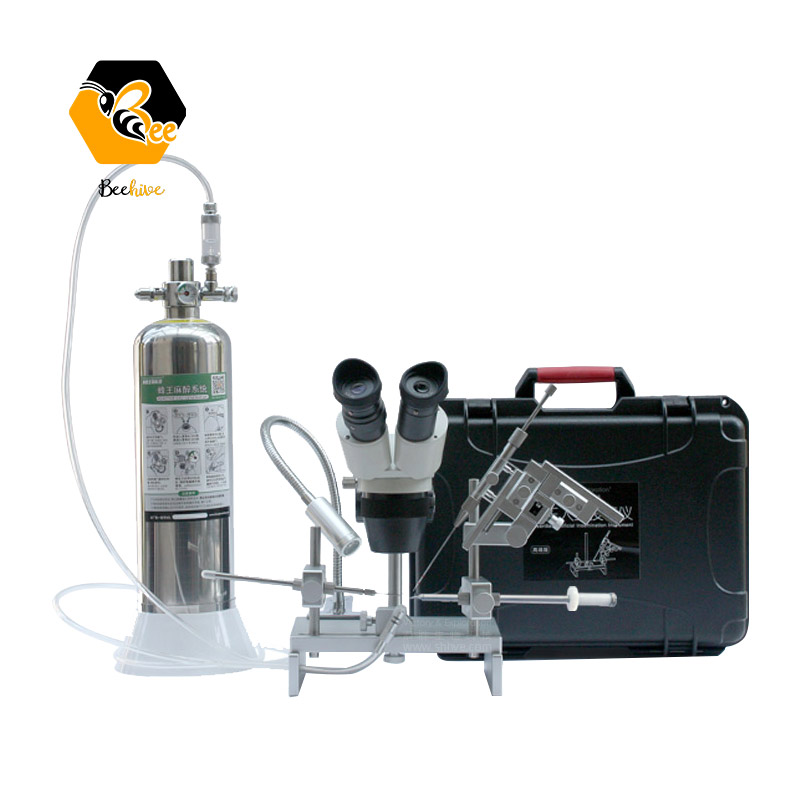

This set includes three main parts: Artificial Insemination Instrument Of Queen Bee , Special Microscope and Queen Bee’s Anesthesia System. The Artificial insemination of Queen Bee can be carried out by this set . If you need to have an upgrade, you may check our other sets or contact with our customer service.
